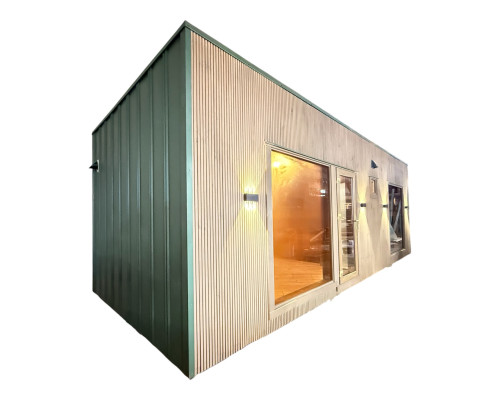

Mobile premium sauna 8.0×3.5×3.0 m made of thermowood | Thermowood Production

A professional solution for building estates, glamping sites, and eco-resorts | Available from Thermowood Production. Construction of saunas, bathhouses, and houses.

TECHNICAL CHARACTERISTICS OF THE DESIGN

DETAILED SPECIFICATION OF MATERIALS FOR LAYERS

External "pie" of the wall (from the street to the room):

1. Exterior cladding (optional) : Option A : 0.5 mm metal standing seam, galvanized + RAL 6020 polymer coating, maximum durability, zero maintenance.  Option B : Heat-treated Belgian batten 35×145 mm tongue-and-groove – premium aesthetics + 30+ years of durability.  Option C : Combination: facade – 35 mm thermal rail, side/rear walls – metal standing seam – optimal price/quality ratio.
2. Ventilated gap : 20–30 mm (20×40 mm batten) – condensate drainage, extending the life of the insulation
3. Hydrovitrostoplast : Diffusion membrane 150 g/m², vapor permeability ≥1500 g/m²/24h — protection of the insulation from moisture from the outside, removal of vapor from the structure
4. Frame : Pine timber 100×40 mm, humidity 12–14%, water-based bioprotection – stable geometry, no deformation after installation
5. Insulation : Basalt mineral wool, density 35–45 kg/m³, thickness 100 mm — non-combustible (class NG), vapor-permeable, thermal conductivity coefficient λ=0.037 W/m K
6. Vapor barrier : Reinforced polyethylene film 200 g/m², with joints sealed with special tape - protection of the insulation from internal moisture.
7. Interior paneling : Common area : Thermally modified pine logs, imitation timber, 20×145 mm, tongue and groove joints — moisture resistance, natural texture.  Steam room : Extra-class linden paneling, 16×95 mm, tongue and groove joints, humidity 8–10% — low thermal conductivity (0.11 W/m K), hypoallergenic, pleasant aroma.

Floor structure (layer by layer):

1. Load-bearing joists : Pine beam 100×40 mm, 400 mm pitch, bioprotection
2. Subfloor : OSB-3 18 mm or CSP 12 mm (moisture-resistant) - a stable base for the finishing coating.
3. Waterproofing : Coating or roll waterproofing in “wet” areas (shower, toilet)
4. Warm floor system : Electric heating mat, power 150 W/m², thermostat – comfort all year round (not in the steam room)
5. Clean finish : Ceramica Deseo Foxwood porcelain stoneware, 20×65 cm, wood imitation, R11 anti-slip coating – aesthetics + practicality + durability

Roofing "pie" (single-slope roof):

1. Coating : Profiled sheeting C-21, galvanized + polymer coating, color RAL 6020, thickness 0.5 mm.
2. Lathing : Board 25×100 mm, step 300 mm.
3. Grille 20×40 mm for ventilation gap.
4. Waterproofing : Diffusion membrane 150 g/m²
5. Insulation : 100 mm mineral wool (optional for year-round use)
6. Vapor barrier : Film 200 g/m² with sealed joints.
7. Ceiling lining : Thermally treated pine or linden paneling (in the steam room)

DELIVERY OPTION: READY OR COMPLETE HOUSE KIT

Option 1: A turnkey ready-made bathhouse (factory assembly)

For whom : Facilities with good access for special vehicles (road width ≥3.5 m, driveway height ≥3.2 m), urgent project launch

Advantages :

• Factory quality : Assembly in a workshop with control of geometry, tightness, and electrical installation
• Speed : Installation on site - 1 day (connection of utilities + positioning)
• Minimal on-site work : No skilled builders required, no construction waste
• Warranty : Full 24 month warranty on all construction and equipment

Technical requirements for delivery :

• Transport: Specialized trailer or low-bed trailer.
• Cargo dimensions: 8.2×3.7×3.2 m (including packaging)
• Weight: ~3.2–3.8 t (depending on configuration)
• Unloading: Crane or manipulator with a lifting capacity of ≥4 t

Option 2: House kit for assembly on site (delivery disassembled)

For whom : Remote locations (Carpathians, Polesia, coastlines), areas without access for large-sized cargo, export to the USA/Canada by container

What is included in the house kit :

• Frame : Disassembled into modules with markings (walls, corner posts, upper/lower trim), assembly instructions with drawings
• Sheathing : Exterior and interior sheathing panels with numbering, spare parts (+3–5%)
• Insulation : Rolls of mineral wool, vapor and waterproofing in individual packaging
• Floors : Logs, OSB/CSP, porcelain tiles (in pallets), underfloor heating system in boxes
• Roofing materials : Corrugated sheets, sheathing, fasteners, selected elements (cornice, ridge, gutter)
• Windows and doors : Individually packaged with glass protection, fittings separately
• Engineering systems : Electrical wiring in corrugated tubing with markings, plumbing units, ventilation elements
• Fastening : A complete set of screws, nails, brackets, corners - with a 10% reserve
• Documentation : Detailed assembly instructions in Ukrainian/English, electrical and plumbing diagrams, video guide available via QR code

Advantages of the house kit :

• Logistics flexibility : Delivery to any location where there is access for a standard truck (up to 3.5 tons, dimensions up to 6×2.5×2.5 m)
• Delivery savings : Up to 40% cheaper compared to delivery of an assembled structure over a distance of >300 km.
• Possibility of staged assembly : Assemble in parts as time/crew allows
• Export Suitability : Ideal for container shipping to USA, Canada, Asian countries.

Requirements for an independent collection :

• Qualifications: A team of 2-3 people with experience in frame construction
• Tools: Screwdriver, level, angle grinder (for cutting metal), drill, mounting gun
• Assembly time: 3–5 days for an experienced team, 7–10 days for beginners under the supervision of our technologist (remotely)
• Quality Control: A final inspection by our specialist (optional, for an additional fee) ensures the warranty is maintained.

TURNKEY PACKAGE: TECHNICAL DETAILS

The steam room is the engineering heart of the bathhouse.

Component	Model/Specification	Technical advantages
Wood-burning stove	Novoslavsky Geyser PKS-04CH	Capacity 20–30 m³, firebox outside (safety), convection casing for uniform heating, firewood savings thanks to the afterburning system.
