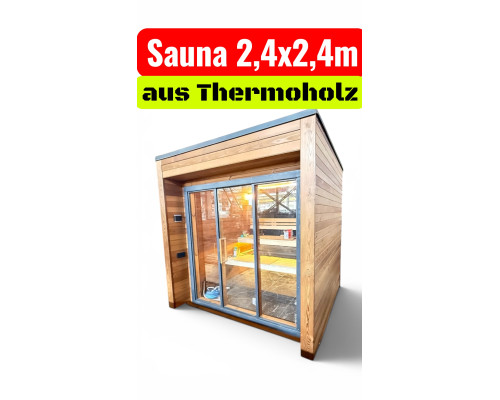

Modular sauna 2.4x2.4 m with a canopy made of thermowood Gartensauna-59 turnkey from Thermowood Production

Looking for a premium, European-quality sauna for private use or a cost-effective leisure complex? Thermowood Production's modular frame sauna (2.4 x 2.4 m, 2.55 m high) is a high-tech solution fully adapted to the stringent operating requirements of Ukraine and Europe (available as a prefabricated module or as a flat-pack kit).

 >

The main advantages of this model:

• Absolute material stability: The interior and exterior finishes are made entirely of our own thermally modified pine . Industrial thermal modification gives the wood a noble hue, makes it moisture-resistant, does not warp, does not rot, and completely loses resin.
• Modern design in Hi-Tech style: Three facades are decorated with stylish smooth planks made of thermally modified wood, while the rear technical facade and roof are made of trendy metal standing seam sheeting in the color Black graphite (RAL 9005/RAL 7016).
• Premium ergonomics and comfort: The steam room is equipped with a convenient transformable shelf made of select linden, designer LED lighting, and a unique ceiling panel made of natural juniper with alpine salt.

Technical specifications

Detailed configuration and design components

1. Foundation and modification of floors

• Foundation: The foundation is laid by the customer. The bottom crown of the structure is 95x45 mm timber.
• Floor pie: Wooden frame, insulated with IZOVAT mineral wool (100 mm), covered with a vapor barrier and a Eurobarrier.
• Finish: Instead of standard wood, durable, moisture-resistant cement-bonded particleboard (CBPB) was installed, along with reliable professional waterproofing. The final finish is 600x600 mm deep black porcelain stoneware tiles .

2. Entrance group (Premium glass)

• Door: Tempered transparent glass 8 mm (without lock), size 1900x700 mm.
• Panoramic windows: two fixed windows on each side of the door, each measuring 1900 x 600 mm. The frame is made of thermally modified pine, anthracite gray (RAL 7016).

3. Arrangement of a steam room (dimensions: 2.15 x 1.93 m, h – 2.05 m)

• Shelves and loungers: Open type, sturdy frame made of thermo-treated pine. The top panel is solid, select basswood (cools down and feels comfortable).
• Tier 1 shelf (transformer): Pull-out design for easy cleaning and storage. Overall width: 850 mm, work surface: 500 mm.
• 2nd tier shelf: Stationary, convenient width 600 mm.
• Anatomical elements: The back of the upper lounger is made of linden (standard).
• Ceiling Finish: Exclusive 1x1m ceiling panel made of natural juniper . When heated, it releases phytoncides, creating an incredible forest aroma.

4. Heating, ventilation and surface finishing

• Supply and exhaust ventilation valve (1 pc.).
• Oven: Designed for an electric oven (purchased separately). Fully prepared for safe connection: a heat-resistant cable (2.5 x 5 mm) is installed 20 cm above the floor and 20 cm from the corner (with free ends 30 cm long).
• Interior painting (oil): The ceiling, walls, and floor are finished with a protective oil. The back wall is finished in a stylish black. The shelves are protected with a special paraffin oil.

5. Electricity and premium LED lighting

• Power section: The shield and protection automation are absent (at the customer’s request), power wires are routed to the “B” facade.
• Switches: Moisture-proof Schneider asf IP-64 (installed on the outside of the sauna).
• Inner light:
  • 2 corner ceramic lamps in the steam room, decorated with a wooden grate with alpine salt (creates the effect of ionization and air healing).
  • Soft LED strip lighting behind the back of the lounger.
  • Stylish LED lighting under the shelf line.
  • Integrated LED lighting of the juniper ceiling panel.
• External light: Double-sided beam facade luminaires on the arch (left and right).

Thermowood Production: Cost and Options Calculation (Euro)

For complete transparency with the buyer, a detailed cost estimate for the design is provided below, taking into account the base cost and individual improvements:

No. s/n	Position name	Reply.	K-st	Price per unit (Euro)	Total cost (Euro)
1	Sauna "Modular - Frame" 2.4x2.4 m, h-2.55 m (Basic configuration with a canopy 0.72 m²)	pcs.	1	3332.88	3332.88
2	Ventilation valve	pcs.	1	50.00	50.00
3	Standard seat backs (steam room)	m/p	1.9	18.00	34.20
4	Entrance block (door 1900x700 + 2 panoramic windows 1900x600), tempered glass 8 mm, frame made of thermo-pine	pcs.	1	785.00	785.00
5	Changes to the basic package: replacement of the wooden floor with a cement particle board with waterproofing (without a side panel)	m²	4.2	68.75	285.31
6	Lower shelf-transformer (pull-out design)	m/p	2.2	40.00	86.00
7	Laying porcelain tiles on the floor	m²	4.2	75.50	313.33
8	Decorative juniper panel for the ceiling	m²	1.0	389.59	389.59
9	Electrical and Premium Lighting Kit (Materials):   - Schneider ASF IP-64 switches   - 2 corner lamps with alpine salt   - LED behind the backrest, under the shelf and for the juniper panel   - cable lines for electric furnaces	kit	1	622.50 Reviews: 0 Average score: 0 Write a review Your Name Your Review Rating Send your feedback There are no reviews for this product. Questions: 0 New question Your name: Your e-mail: Your question: Send your question No questions about this product. Похожие товары Bath mobile frame-panel 2.0x3.0m from the manufacturer 1475357879 Frame-panel sauna 2.0x3.0 Bathhouses made of profiled wooden beams have a huge advantage over brick buildings. Wood is an environm.. 0.00€ В корзину Bath mobile with a panoramic window 4.0x2.5m 1475358089 Bath mobile with a panoramic window 4.0 x 2.5 m.. 0.00€ В корзину Ready-made mobile modular bath 6x3 m 1513878588 Ready-made mobile modular bath 6x3 m. shield, from profiled timber, from turnkey rounded timber from the manufacturer... 0.00€ В корзину Frame-modular bath 6x3 m on a turnkey basis from the manufacturer 1513896781 Frame-modular bath 6x3 m on a turnkey basis from the manufacturer.. 0.00€ В корзину Turnkey mini bath for giving 6x3 m. from the manufacturer 1513919130 Turnkey mini bath for giving 6x3 m. from the manufacturer. Complete set of turnkey bath and frame... 0.00€ В корзину Вы недавно смотрели
